HF BROADBAND TWO FOLDED DIPOLE ANTENNA
SXO-2K(2) 2 - 30 MHz Unity Gain


General:
The HF Broadband Two Element Folded Dipole Antenna provides optimum performance over complete HF band, eliminating the requirement of multiple antennae or an Antenna Tuning Unit, (ATU).

Design & Construction:

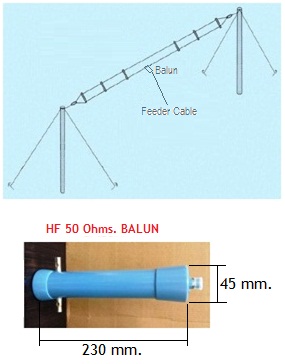

The antenna is designed by using two fold twisted stainless steel rope with a matching Air-cored light weight Balun, weighing less than 500 grams. Length of Balun : 23 Cms., Outer Diameter of Balun : 4.5 Cms. The Balun is supplied with the antenna.

Installation:
HF Broadband Two Element Folded Dipole Antenna can be mounted either in a standard dipole configuration (Horizontal Polarized) using two masts, 30 Meters apart or using a single mast as inverted “V” or slanted on a 6 feet high pole.


ELECTRICAL DATA
Frequency Range (MHz)2 - 30
Gain (dBi) Unity
Bandwidth (MHz)28
PolarizationHorizontal or
Inverted
Input Impedance (Ohms)50
VSWR1:1.5 or Better
RF Power Handling Capacity (Watts)2000
Input TerminationN-Female
Lightning ProtectionDirect Ground
MECHANICAL DATA
Weight (Kgs)3
Wind Rating (KMPH)200
Overall Length (Meters)27
Dipole MaterialTwisted Stainless Steel Rope
Spreaders MaterialEpoxy Rods
Insulator MaterialNylon
Recommended Mast Height15 Meters (50 Feet)
Distance between Mast27 Meters
Operating Temperature(-)20 to +50 Degree Celcius
Storage Temperature(-)30 to +60 Degree Celcius
Humidity0 to 95% RH

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.

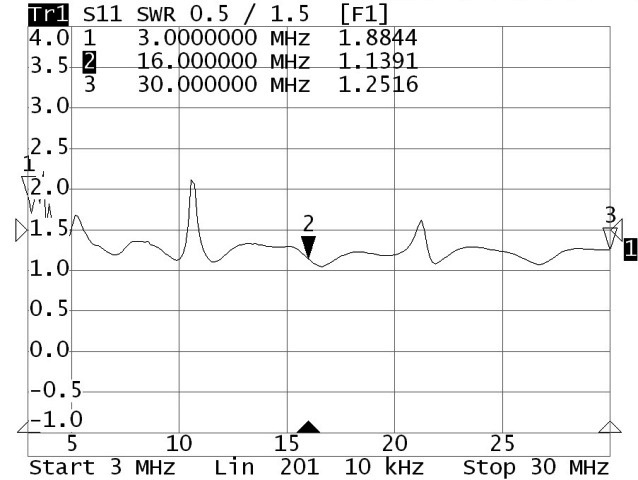

VSWR CURVE

AZIMUTH RADIATION PATTERN
