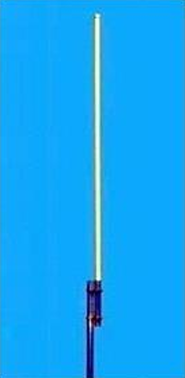

SXC-1503

General:

This SXC-1503 Fiberglass Collinear Antenna  is a rugged all weather model enclosed in a Fiberglass Radome which does not require field tuning or adjustments. Fiberglass has excellent transparency for radio frequencies, it also has excellent strengthto-weight ratio to impart adequate strength to the antenna structure. It is specially designed for Omni Directional requirements for base station or wireless terminal devices. The compact size of Fiberglass Omni Directional Antenna allows easy transportation and handling. Specially designed mounting hardware is provided with the antenna for easy installation.

Design & Construction:

Co-axial stub matching is used for smooth VSWR and constant gain over the specified frequency band. This heavy duty antenna is specially designed to avoid the use of any Ground Plane Radials. The all Brass antenna prevents formation of “Signal Cells”, thereby eliminating intermodulation within the antenna. The antenna employs multiple Brass radiating elements stacked collinearly which are fed in phase. The antenna termination is enclosed for complete weather protection
