General :
The HF Broadband Three Element Folded Dipole Antenna provides optimum performance over complete HF band, eliminating the requirement of multiple antennae or an Antenna Tuning Unit, (ATU).

Design & Construction:

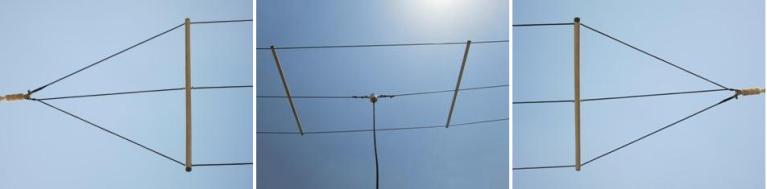

The antenna is designed by using three folded arms with a matching Balun.

Installation:
It can be mounted for Horizontal polarization in a standard dipole configuration using two masts of 50 feet each. Total space required for installing the HF Broadband Dipole Antenna in the Horizontal polarization is 30 Meters.
