BROADBAND OMNI DIRECTIONAL ANTENNA
SXC-6506 Broadband 460-860 MHz 6 dBi. Gain


General:

This SXC-6506 Broad Band Fiber Glass Collinear Antenna is rugged all weather model, is enclosed in a Radome made of Fiber Glass, uses high class chrome plated Brass and does not require any field tuning or adjustments. The Fiber Glass has excellent transparency for Radio Signal and mechanically Robust to impart adequate strength to the antenna structure. It is specially designed for Broad Band Omni directional requirements for internet radio links. The compact size of antenna allow easy handling and specially designed mounting hardware result in fast installation.


Design & Construction:
The co-axial stub matching is used for smooth VSWR and constant Gain over the complete 400 MHz. wide frequency band. The all Brass antenna prevents formation of “Signal Cells”, thereby eliminating intermodulation with in the antenna. The antennas employ multiple, large diameter Brass radiating elements stacked collinearly, fed in phase and enclosed in weatherproof fiber glass housing. The antenna termination is enclosed for complete weather protection.


ELECTRICAL DATA
Frequency Range (MHz)460-860
Gain (dBi)6 dBi.
Bandwidth (MHz)400
PolarizationVertical
Input Impedance (Ohms)50
Radiation PatternOmni Directional
Beamwidth 3db (Degrees)20 (Vertical)
VSWR< 1:1.6
RF Power Handling Capacity (Watts)150
Input TerminationN-Female
MECHANICAL DATA
Mounting HWMounting Clamp
Weight (Kgs)4
Wind Rating (KMPH)165
Overall Length (Meters)3.1
Shipping Length (Meters)3.2
Support Pipe O.D. (mm)250-400
Support Pipe MaterialAluminum
Radome MaterialFiberglass Tube
Radome O.D. (mm)45
Radome Length (mm.)3050

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.


VSWR CURVE

AZIMUTH RADIATION PATTERN

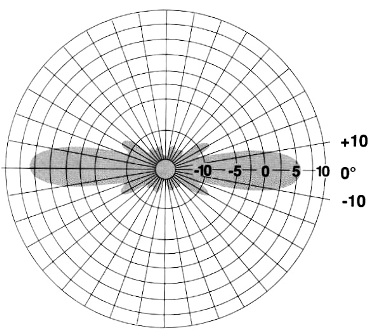

ELEVATION RADIATION PATTERN
