WHIP MOBILE ANTENNA
SXM-750 66-88 MHz Unity Gain


General :
The whip mobile 5/8 wave all brass antenna uses base loading technique for smooth impedance matching. Air-cored base loading coil keeps the losses to minimum.

This Whip Mobile Antenna comes with a 3.5 Meter long RG-58 Coaxial Cable with N-Male Connector.


ELECTRICAL DATA
Frequency Range (MHz) 66-88
Gain (dBi)Unity
Bandwidth (MHz)2
Input Impedance (Ohms)50
Radiation PatternOmni
VSWR1.5 : 1
RF Power Handling Capacity (Watts)250
Input TerminationUHF-Male / N-Male
MECHANICAL DATA
Weight (Kgs)0.6
Wind Rating (KMPH)150
Whip ElementsStainless Steel
Whip Dia(MM)3.2
Coil HousingNylon
Base Dia(MM)100
Base MaterialNylon
Coaxial CableRG-58
Cable Length3.5
Mounting Type"L" Clamp

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.


VSWR CURVE
Click here to Send Request

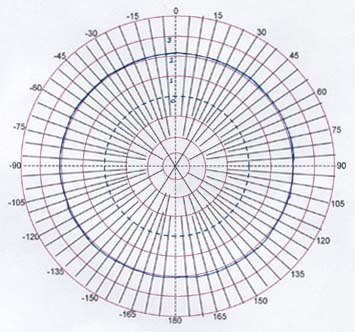

AZIMUTH RADIATION PATTERN

ELEVATION RADIATION PATTERN
